TILTING TYPE ROTARY FURNACE
AXIS TILTING TYPE ROTARY FURNACES are the advanced design of conventional rotary furnace. TTRF are generally used in the melting plants like aluminum recycling aluminum dross melting. Lead/zinc recycling and dross melting, all non-ferrous metals.
This furnace has a fabricated tilting and stationery membrane. The furnace is made up of heavy duty mild steel sections and plates with sufficient wall thickness. Furnace will be lined with monolithic ramming mass suitable for applications upto 120oC. Furnace lining work will be carried out at the customer end in order to avoid breakages in transportation.
Furnace will be supplied with AXIS oxy-fuel systems uitable for the fuels like, HSD, LDO, FO, PG, NG, COG, and LPG. Additional accessories like, fuel tank, transferring pumping systems, liquid fuel handling systems, Centrifugal air blower, Gas handling & safety systems will also be supplied.
OIL OR GAS FIRED AIR FUEL |
||||||||
|---|---|---|---|---|---|---|---|---|

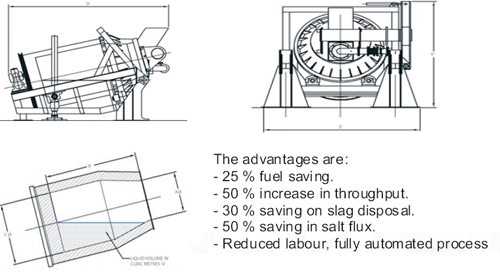

| Model | Kgs Alu | A | B | C | D | E | F | Vm3 |
| TR 1 | 1000 | 850 | 2540 | 1100 | 4450 | 2235 | 2250 | 0.5 |
| TR 2 | 2000 | 1100 | 3050 | 1400 | 5400 | 3200 | 2885 | 1.0 |
| TR 3 | 3000 | 1300 | 3200 | 1700 | 6750 | 4500 | 3200 | 1.6 |
OIL OR GAS FIRED AIR OR OXY FUEL OPTIONS |
||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Kgs Alu | A | B | C | D | E | F | Vm3 |
| TR 5 | 5000 | 1400 | 3200 | 2100 | 5710 | 5700 | 3665 | 2.5 |
| TR 8 | 8000 | 1500 | 4000 | 2300 | 6510 | 5700 | 4000 | 4.0 |
| TR 10 | 10000 | 1800 | 4700 | 2400 | 8040 | 6760 | 5000 | 5.0 |
| TR 15 | 15000 | 2000 | 6000 | 2800 | 8675 | 7000 | 5460 | 7.5 |
| TR 21 | 21500 | 2000 | 6000 | 3000 | 8675 | 7250 | 5660 | 11.0 |
ADVANTAGES |
|
|---|---|
| Rugged Construction | Less Fuel Consumption |
| 50% increase in throughput | 50% saving in salt flux |
| Liquid metal & Slag will be removed separately | Fitted with Axis Highly acclaimed combustion system |
| Minimize labour cost | High metal recovery |
| Axis quality built into every machine | |
